Downstream Magnetic Spectrometer (Vacuum Straw Tracker)

• People  Downstream Magnetic Spectrometer (DMS) Group Members

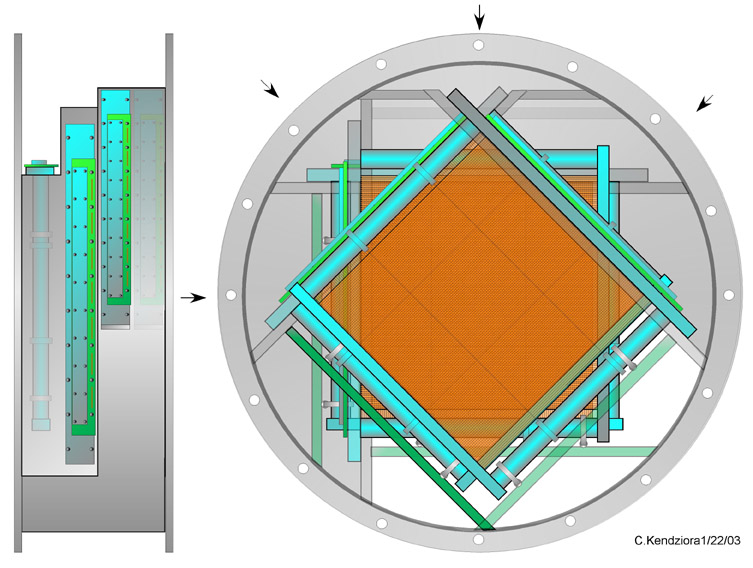

• Latest Conceptual Design (Feb 2003) of DMS chamber and Vacuum Spool (jpg)

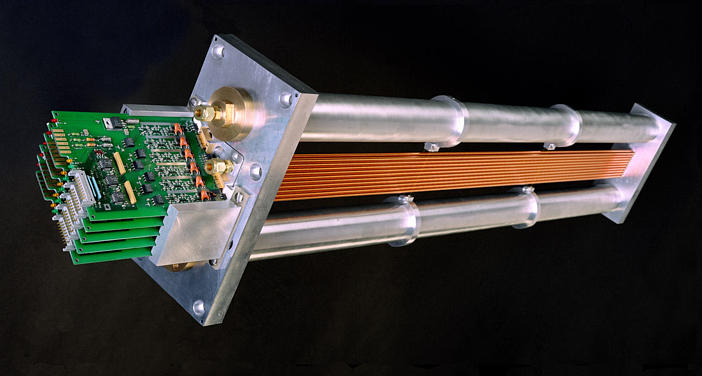

• Jpeg picture of 20-channel DMS prototype
• Jpeg picture of teststand of both prototypes (top one in air, bottom in vacuum tank)
• Event display of cosmics through prototypes (eps)

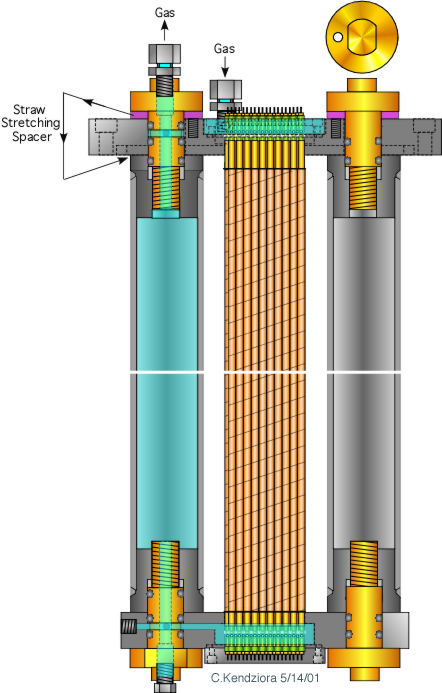

• Jpeg drawing of 20-channel DMS prototype
• Jpeg drawing of full scale prototype and spool
• Jpeg drawing of frame detail

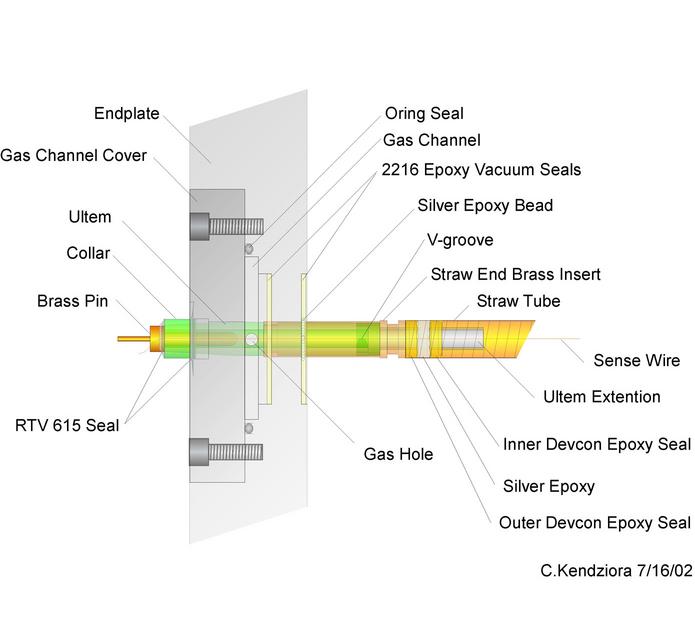

• Anatomy of Straw Doublet  (eps)


• TDC distribution of all hits for ArEthane at 1750V (chamber in air)  (eps)
• TDC distribution of first hits for ArEthane 1750V   (chamber in air)  (eps)
• Hit Resolution of Straws (ArEthane 1750V -- chamber in air)  (eps)
• Hit Efficiency of Straws (ArEthane 1750V -- chamber in air)  (eps)
• Hit Resolution of Straws (ArCO2 1500V) upper chamber in air, lower chamber in 0.5 Torr vacuum (eps)

• Hit Efficiency of Straws (ArCO2 1500V -- chamber in 0.5 Torr vacuum) (eps)


• Qi's talk at CKM group meeting in Dec 2002  (ps.gz)
• Hogan's talk at CKM group meeting in Feb 2003 (ps.gz)
• Hogan's talk at Temple Review in Feb 2003 (watch out...big files) (ps.gz) (staroffice)

• Paper describing construction of 20-straw prototype (submitted to NIM-A) (ps.gz)


• Pulseshape picture of Fe55 in ArEthane using BNL-871 Electronics (ps)
• Preliminary design of electronics from Mark Kozlovsky -- March 2003 (ps)
